What instrument is used to measure diameter?

Definition of Diameter Measurement Instruments

Diameter measurement tools are essential devices designed to determine the width across circular objects with high precision. These instruments play a crucial role in various disciplines such as engineering, manufacturing, and medical fields, where exact dimensional data is vital. Over time, a diverse array of tools has been developed, each tailored to specific measurement needs and environments, offering unique advantages in accuracy, ease of use, and application scope.

Types of Diameter Measurement Tools

Calipers: Versatile and User-Friendly

Calipers represent one of the most widely used instruments for measuring diameter, combining simplicity with precision. They range from traditional vernier calipers to advanced digital models:

• Vernier Calipers:
  Featuring two scales-a main scale and a vernier scale-these calipers allow users to read measurements with fine resolution, often down to fractions of a millimeter. The vernier scale enhances the main scale’s readings by providing fractional increments, requiring manual interpretation akin to solving a numerical puzzle.
• Digital Calipers:
  These modern variants incorporate electronic sensors and digital displays, presenting measurements directly in numeric form. This eliminates the need for manual calculation, streamlining the measurement process and reducing human error.

Micrometer Screw Gauges: Precision at a Micro Level

Micrometers are specialized instruments renowned for their exceptional accuracy, often used when minute dimensional details are critical. They operate through a spindle and anvil mechanism, where the object is gently clamped between these two parts. The micrometer’s thimble rotates in finely calibrated increments, typically 0.01 millimeters per turn, allowing users to measure with remarkable exactness. This tool is indispensable in fields requiring meticulous dimensional control, such as watchmaking and precision engineering.

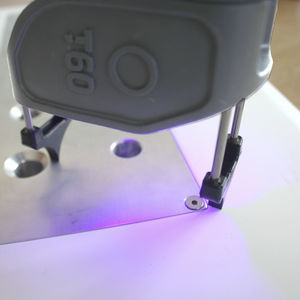

Laser Diameter Gauges: Cutting-Edge Optical Measurement

Laser diameter gauges utilize light-based technology to measure dimensions without physical contact. By projecting a laser beam onto the object, these devices analyze the reflected or interrupted light to calculate the diameter. This non-invasive method offers rapid and highly accurate measurements, making it ideal for fast-paced industrial environments where both speed and precision are paramount.

Optical Comparators: Visual and Geometric Analysis

Optical comparators magnify the silhouette of a part by projecting its image onto a screen, enabling detailed visual inspection against predefined standards. This technique not only measures diameter but also provides a comprehensive understanding of the part’s overall geometry. It bridges the gap between quantitative measurement and qualitative assessment, highlighting the aesthetic and functional aspects of design.

Bore Gauges and Dial Indicators: Specialized Internal Diameter Measurement

For measuring internal diameters, especially in automotive and aerospace applications, bore gauges and dial indicators are indispensable:

• Bore Gauges:
  Designed to access and measure the inside of cylindrical components, bore gauges function similarly to calipers but are optimized for internal spaces. Their adjustable arms expand to fit the bore, providing precise internal diameter readings.
• Dial Indicators:
  Often used alongside other tools, dial indicators detect minute variations in diameter along an axis. Their needle movements reflect subtle changes, offering real-time feedback crucial for quality control and defect detection.

How Diameter Measurement Instruments Operate

Each instrument employs distinct principles to ascertain diameter:

• Calipers: Measure the distance between two opposing jaws placed on the object’s edges, with scales or digital readouts translating this distance into a diameter value.
• Micrometers: Use a screw mechanism to advance a spindle toward an anvil, clamping the object and translating rotational movement into linear displacement for precise measurement.
• Laser Gauges: Emit a laser beam that interacts with the object’s surface; sensors detect changes in light patterns to compute diameter without contact.
• Optical Comparators: Project magnified images of the object’s profile, allowing visual comparison and measurement against reference standards.
• Bore Gauges and Dial Indicators: Insert into internal spaces, expanding or detecting variations to measure internal diameters accurately.

Mathematical Principles and Measurement Accuracy

Diameter measurement relies on translating physical distances into numerical values, often involving precise calibration and mathematical interpretation:

• Vernier Scale Calculation:
  The vernier scale allows reading between the smallest divisions of the main scale by identifying the line on the vernier scale that aligns best with a line on the main scale, enabling fractional measurement increments.
• Micrometer Formula:
  Diameter = (Number of thimble rotations × pitch) + (thimble scale reading × least count)
  Where pitch is the distance the spindle moves per full rotation, and least count is the smallest measurable increment.
• Laser Measurement Principle:
  Based on triangulation or time-of-flight calculations, where the distance is derived from the angle or time taken by the laser light to reflect back.

Practical Applications of Diameter Measurement

Accurate diameter measurement is vital across numerous industries and scenarios:

• Manufacturing: Ensures components meet design specifications, maintaining product quality and interoperability.
• Automotive and Aerospace: Critical for engine parts, cylinders, and other components where precise internal and external diameters affect performance and safety.
• Medical Devices: Used in the fabrication of implants and instruments requiring exact dimensions for compatibility and function.
• Education: Calipers and micrometers serve as fundamental teaching tools for students learning precision measurement techniques.

Common Misunderstandings About Diameter Measurement

• Misconception: Digital calipers are always more accurate than vernier calipers.
  Correction: While digital calipers offer ease of reading, accuracy depends on build quality and calibration; high-quality vernier calipers can be equally precise.
• Misconception: Laser gauges can measure any surface without error.
  Correction: Surface reflectivity and texture can affect laser measurement accuracy, requiring calibration or alternative methods for certain materials.
• Misconception: Bore gauges can measure external diameters.
  Correction: Bore gauges are specifically designed for internal diameters; external measurements require calipers or micrometers.

Significance of Diameter Measurement in Technology and Industry

Precise diameter measurement underpins the integrity and functionality of countless products and systems. It ensures that parts fit together seamlessly, operate efficiently, and maintain safety standards. In manufacturing, it reduces waste and rework by verifying dimensions early in production. In scientific research, accurate measurements enable reproducibility and validation of experiments. Ultimately, these instruments bridge the gap between conceptual design and tangible reality, embodying the meticulous craftsmanship and technological advancement that drive progress.
